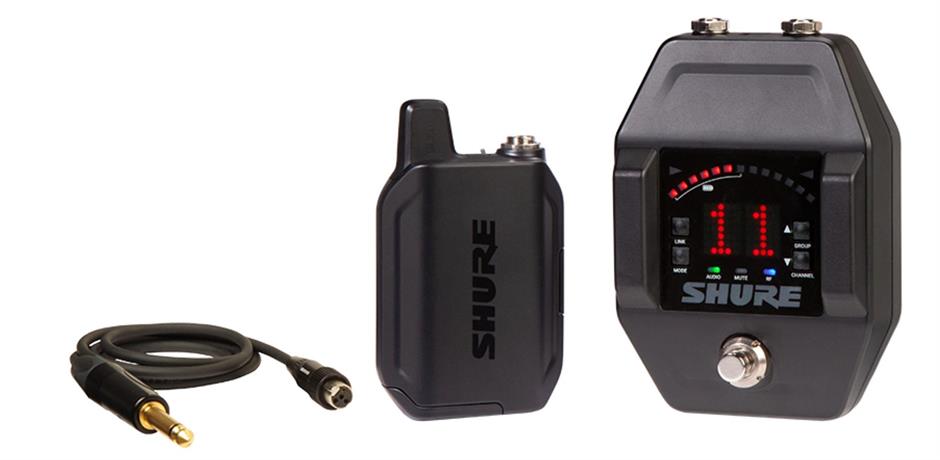

Shure GLXD16+ GUITAR PEDAL SYSTEM

Shure GLXD16+ GUITAR PEDAL SYSTEM

System Specifications
Compatibility With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions
Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions
System Operating Range Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions
Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
Transmit Mode Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
Audio Frequency Response 20 Hz – 20 kHz Note: Dependent on microphone type
Dynamic Range 120 dB, A-weighted
RF Sensitivity -88 dBm, typical
Total Harmonic Distortion 0.07%, typical
RF Output Power 10 mW E.I.R.P. max
Operating Temperature Range -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range.
Storage Temperature Range -29°C (-20°F) to 74°C (165°F)
Polarity Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output.
Battery Life Up to 12 hours
NOTE: All Specifications are subject to change. Performance may vary depending on country regulations and operating environment.

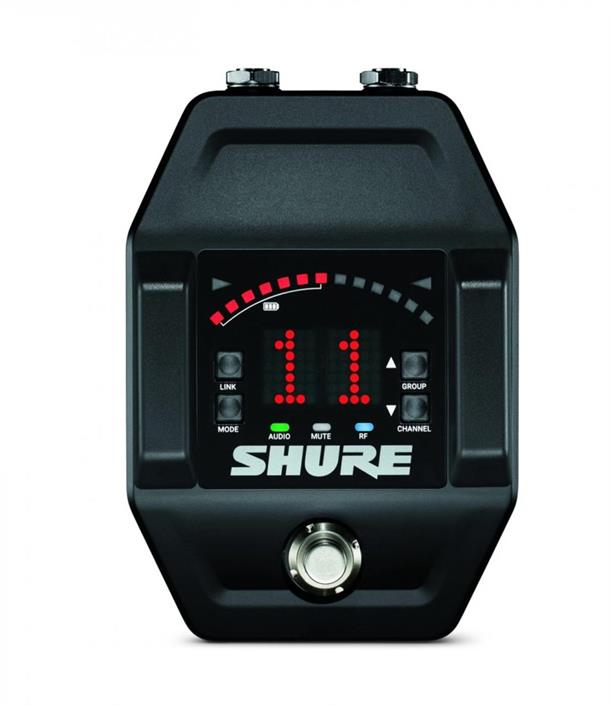

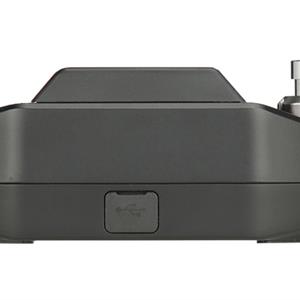

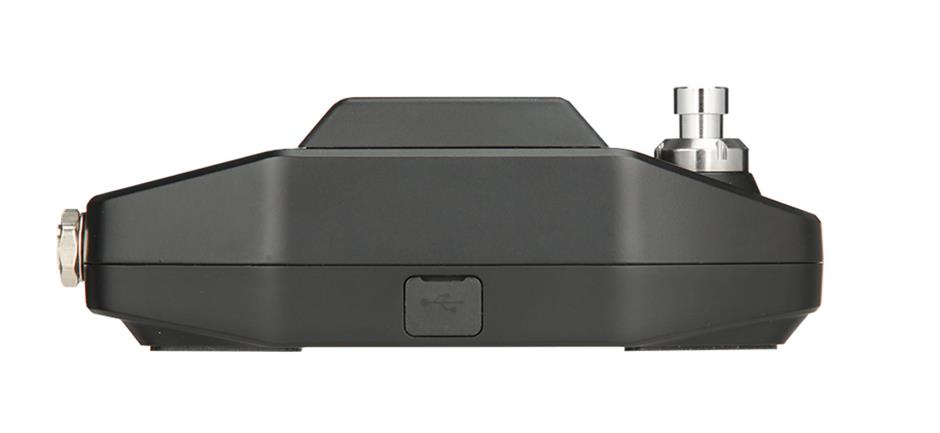

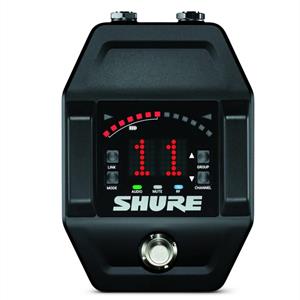

GLXD6 DUAL BAND GUITAR PEDAL RECEIVER
Dimensions 5.4 x 3.7 x 1.89 in. (138 x 95 x 48 mm, W x D x H
Weight 19.75 oz (560 g)
Housing Aluminum alloy
Power Requirements 9 V - 15 V, 400mA (efficiency level VI power supply)
Spurious Rejection >35 dB, typical
Gain Adjustment Range -20 to 40 dB in 1 dB steps
Configuration 6.35 mm (1/4“) output Impedance balanced
Impedance 6.35 mm (1/4“) output 100 Ω (50 Ω, Unbalanced)
Maximum Audio Output Level 6.35 mm (1/4“) connector (into 3 kΩ load) +8.5 dBV
Pin Assignments 6.35 mm (1/4“) connector Tip=audio, Ring/Sleeve=ground
Audio Input Modes Tuner or True Bypass

RECEIVER ANTENNA INPUT
Impedance 50 Ω
Antenna Type Dual Band Internal Monopole
Maximum Input Level −20 dBm
GLXD1+ DUAL BAND BODYPACK TRANSMITTER

Dimensions 4.5 x 2.6 x 1.1 in. (115 x 66.94 x 28.51 mm), (W x D x H), without antenna
Weight 5.4 oz (153.1 g), without battery
Power Requirements 3.7 V Rechargeable Li-Ion
Housing Cast Metal, Black Powdercoat
Input Impedance 900 kΩ
RF Output Power 10 mW E.I.R.P. max

TRANSMITTER INPUT
Connector 4-Pin male mini connector (TA4M)
Configuration Unbalanced
Maximum Input Level
(1 kHz at 1% THD) +8.4 dBV (7.5 Vp-p)
Antenna Type Dual Band Internal Monopole
Pin Assignments
TA4M 1: Ground (cable shield)
2: + 5 V Bias
3: Audio
4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)
